| 최대 부하: | 50KN,100KN,200KN,300KN | 정확한 등급: | 0.5 등급 |
|---|---|---|---|
| 유효측정범위: | 0.4%~100% | 정확도 측정: | 값±0.5%를 표시하십시오 |
| 테스터 해결: | 최대 부하 1/200000 | 효과적 테스트 폭: | 400mm |
| 효과적 장력 타격: | 800mm | 테스트 속도 범위: | 0.01~100mm/min |
| 치환 측정 정확도: | ± 0.5% | 변형 측정 범위: | 최소 범위: 10mm, 최대 범위: 800mm |
| 변형 측정 정확도: | ± 0.5% | 전원공급장치: | 220V, 50Hz |
| 전력 소비: | 0.75kW | 기계 치수: | 107*56*210cm |
| 무게: | 320kg | ||
| 강조하다: | 50kN universal tensile testing machine,ISO 6892 fiber composites test machine,digital control tensile testing machine |
||

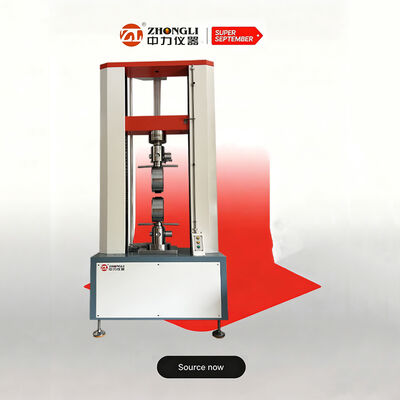

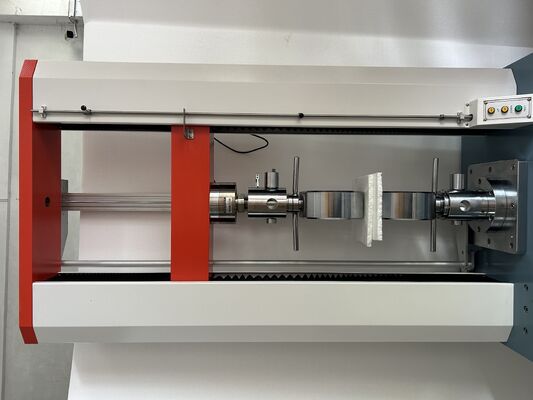

This test machine is designed for testing flexible materials with large deformation, including rubber, plastics, leather, and similar materials. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.
Widely used in quality control across multiple industries including:
GB/T16491-1996 electronic universal testing machine
| Model | ZL-8006 |
|---|---|
| Maximum load | 50KN,100KN,200KN,300KN |
| Accurate grade | 0.5 grade |
| Effective measuring range | 0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value±0.5% |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective testing width | 400mm(can be widened according to customer's requirement) |
| Effective tensile stroke | 800mm (can be increased according to customer's requirement) |
| Range of testing speed | 0.01~100mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Back to function of testing platform | Manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

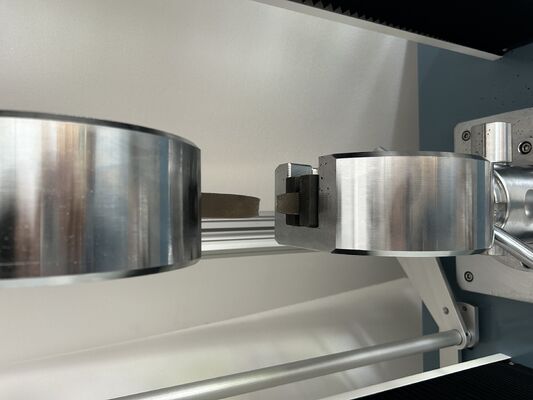

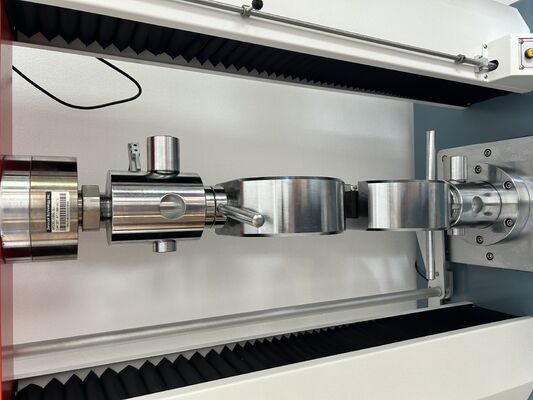

| Fixture | A set of tensile fixture |
| Machine size | 107*56*210cm(length*width*height) |
| Motor | Panasonic AC servo motor and drive |
| Sensor | USA Transcell high accuracy loadcell |
| Power | 220V, 50HZ, 0.75KW (depending on different demand of force) |
| Weight | Approximately 320 KG |
| Unit | KG, N, LB, TON can be exchanged |
Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high accuracy for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is simple to operate and ideal for quality control in production lines, suitable for testing non-metallic and metallic materials with loads less than 2 tons.
Features include photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software for measurement, control, calculation and storage. Automatically calculates stress, elongation rate (with extensometers), tensile strength, elastic modulus, and statistical results. Computer displays dynamic curves during testing with post-test data analysis and report generation capabilities.
