| 최대로드: | 5KN, 10KN, 20KN, 사용자 정의 가능 | 유효측정범위: | 0.2%~100%(1grade)/0.4%~100% (0.5 학년) |
|---|---|---|---|
| 정확도 측정: | 가치 ±1%/Display를 드러냅니다 value±0.5% | 테스터 해결: | 최대 부하 1/200000 |
| 효과적 테스트 폭: | 390mm | 효과적 장력 타격: | 800mm, 1000mm, 1200mm |
| 실험 속도의 범위: | 0.001~200mm/min ; 500 밀리미터 / 분 (1000mm / 분이 선택입니다) | 변위 측정의 정확도: | 허용한도 : ±0.5%/ 허용한도 : ±0.2% |
| 변형 측정 시스템: | 최소 스팬 : 10mm, 최대 변형 범위 : 800mm | 측정된 변형의 정확도: | 포용력: ±0.5% |
| 과부하 보호: | 과부하 10%, 자동 보호 | 기계 크기: | 80x55x220cm(길이*너비*높이) |
| 전원 공급 장치: | 220V, 50Hz | 힘: | 0.4kW |
| 기계 무게: | 250kg | ||

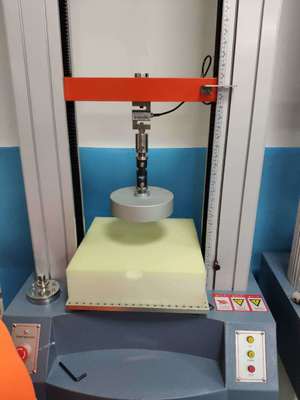

| 강조하다: | 800mm Tensile Stroke Universal Testing Machine,390mm Testing Width Universal Testing Machine,Two-Year Warranty Foam IFD Hardness Tester |
||

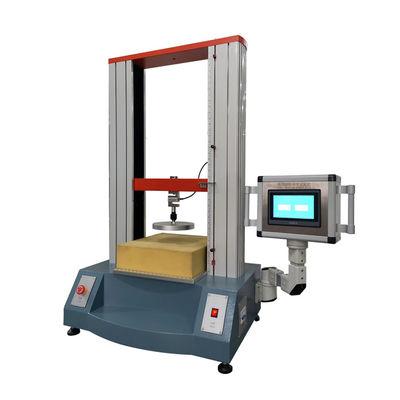

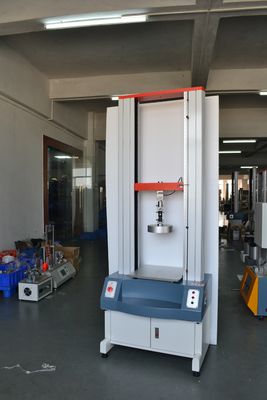

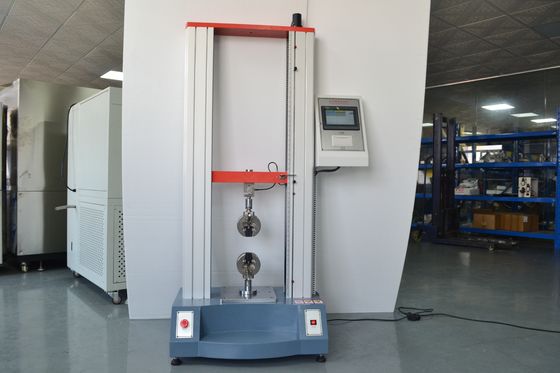

| Model | ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
|---|---|
| Max load | 5KN,10KN, 20KN, Can be customized |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor | Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Return back | Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

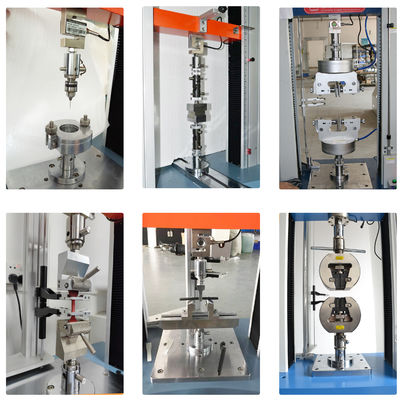

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm (length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depending on different demand of force, using different motor) |
| Machine weight | (about) 250 Kg |
| Units | Kg, N, LB, TON, can be exchanged |
