| 최대로드: | 5kn, 1T, 2T, 사용자 정의 가능 | 유효측정범위: | 0.2%~100%(1grade)/0.4%~100% (0.5 학년) |
|---|---|---|---|
| 정확도 측정: | 가치 ±1%/Display를 드러냅니다 value±0.5% | 변위 측정의 정확도: | 허용한도 : ±0.5%/ 허용한도 : ±0.2% |
| 테스터 해결: | 최대 부하 1/200000 | 과부하 보호: | 과부하 10%, 자동 보호 |
| 효과적 장력 타격: | 800mm, 1000mm, 1200mm | 효과적 테스트 폭: | 390mm |
| 실험 속도의 범위: | 0.001~200mm/min ; 500 밀리미터 / 분 (1000mm / 분이 선택입니다) | 변형 측정 시스템: | 최소 스팬:10mm, 최대 변형 범위:800mm |
| 측정된 변형의 정확도: | 공차: ±0.5% | 기계 크기: | 80x55x220cm(길이*너비*높이) |
| 전원 공급 장치: | 220V, 50Hz | 힘: | 0.4kW |
| 기계 무게: | 250kg | ||
| 강조하다: | 100KG Universal Testing Machine,500KG Tensile Testing Machine,5KN Universal Tensile Strength Testing Equipment |
||
This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise specimen measurement.
Widely used in quality control across multiple industries including:
GB/T16491-1996 electronic universal testing machine

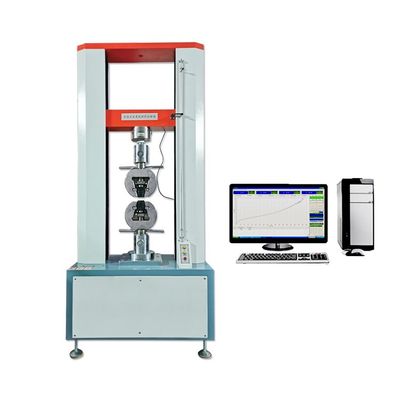

| Model | ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
|---|---|
| Max load | 5KN,10KN, 20KN, Can be customized |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor | Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Return back | Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

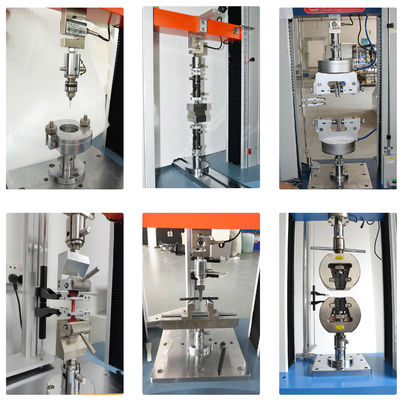

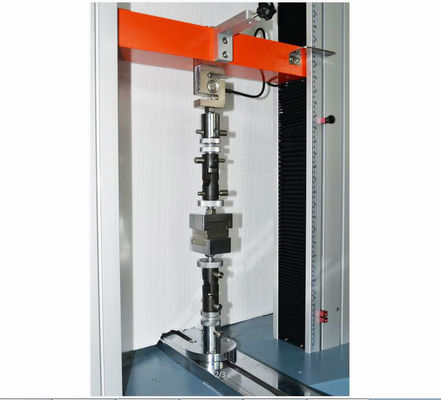

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm (length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depending on different demand of force, using different motor) |
| Machine weight | (about) 250 Kg |
| Units | Kg, N, LB, TON, can be exchanged |
Electronic Universal Tensile Test Equipment combines electronic technology with mechanical transmission, featuring accurate load speed, force measurement range, and high precision for load and displacement measurement. Capable of constant-velocity loading and displacement testing, this machine is ideal for production line quality control, primarily for testing non-metallic and metallic materials with loads less than 2 tons.
The computer servo testing machine can measure and calculate:
Features include:
Our professional team will provide recommendations based on your testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be specially arranged.
Yes, we offer both standard and customized machines according to your requirements.
Yes, we welcome factory visits and can assist with travel arrangements.
Our machines have been sold to over 80 countries worldwide.
Two-year warranty with technical support and parts replacement.
Standard export wooden boxes ensure safe transportation by sea or air.
Inquiry → quotation → communication → order confirmation → deposit payment → production → testing → balance payment → packing → delivery → customer receiving → after service.
English operating instructions and video are provided with the product.
