| 최대로드: | 300kn | 정확한 등급: | 0.5 등급 |
|---|---|---|---|
| 유효측정범위: | 0.4%~100% | 정확도 측정: | 값±0.5%를 표시하십시오 |
| 테스터 해결: | 최대 부하 1/200000 | 변위 정확도: | 공차: ±0.5% / ±0.2% |
| 효과적 장력 타격: | 800mm | 효과적 테스트 폭: | 400mm |
| 전원공급장치: | 220V ± 10% | 시험 하중 범위: | 1%-100% |
| 시험 하중 결의안: | 최대 시험력의 1/500000 | 변형 분해능: | 최대 변형 1/500000 |
| 변위 해상도: | 0.001mm | 속도 범위: | 0.01mm/분 ~ 400mm/분 |
| 서보 모터 동력: | 3kw | ||
| 강조하다: | 300kN universal testing machine,30T capacity tensile tester,servo tensile machine for steel wire |
||

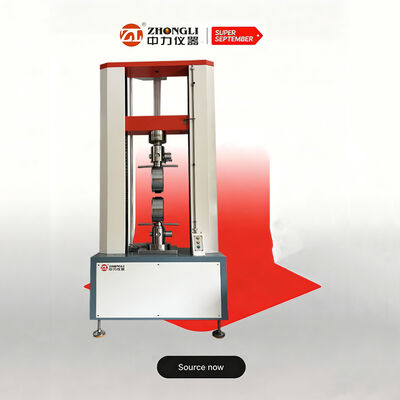

Our microcomputer-controlled electronic universal testing machine incorporates advanced foreign technology to deliver superior performance for material testing applications.
This versatile testing machine performs mechanical property tests on both metal and non-metal materials, including:
Ideal for quality control, research, aerospace, metallurgy, automotive, and construction industries.
Meets national standards GB/T228.1-2010 (metal tensile testing) and GB/T7314-2005 (metal compression testing), with compatibility for GB, ISO, ASTM, and DIN standards.
Standard configuration includes wedge-type tensile attachment and compression attachment.
| Parameter | Value |
|---|---|
| Maximum Test Force | 300 kN |
| Test Force Measurement Range | 1%-100% |
| Test Force Resolution | 1/500000 of maximum force |
| Speed Range | 0.01-400 mm/min (stepless) |
| Tensile Stroke | 600 mm |
| Compression Space | 600 mm |
| Servo Motor Power | 3 kW |
| Dimensions | 900×600×2000 mm |
| Weight | Approx. 500 kg |
Since 2007, we have specialized in manufacturing laboratory testing equipment for various industries including rubber, plastics, food packaging, and electronics. Our products are exported to over 110 countries with particular success in European and American markets.
