| 최대로드: | 5KN,1톤,2톤 | 유효측정범위: | 0.2%~100%(1grade)/0.4%~100% (0.5 학년) |
|---|---|---|---|
| 정확도 측정: | 가치 ±1%/Display를 드러냅니다 value±0.5% | 테스터 해결: | 최대 부하 1/200000 |
| 효과적 테스트 폭: | 390mm | 효과적 장력 타격: | 800mm, 1000mm, 1200mm |
| 실험 속도의 범위: | 0.001~200mm/분; 500mm/분 | 변위 측정의 정확도: | 허용한도 : ±0.5%/ 허용한도 : ±0.2% |
| 변형 측정 시스템: | 최소 범위: 10mm, 최대 범위: 800mm | 측정된 변형의 정확도: | 공차: ±0.5% |
| 과부하 보호: | 과부하 10%, 자동 보호 | 기계 크기: | 80x55x220cm |
| 전원공급장치: | 220V, 50Hz | 힘: | 0.4kW |
| 기계 무게: | 250KG | ||
| 강조하다: | 20KN universal testing machine for material testing,mechanical tensile tester with competitive price,universal testing machine with warranty |
||

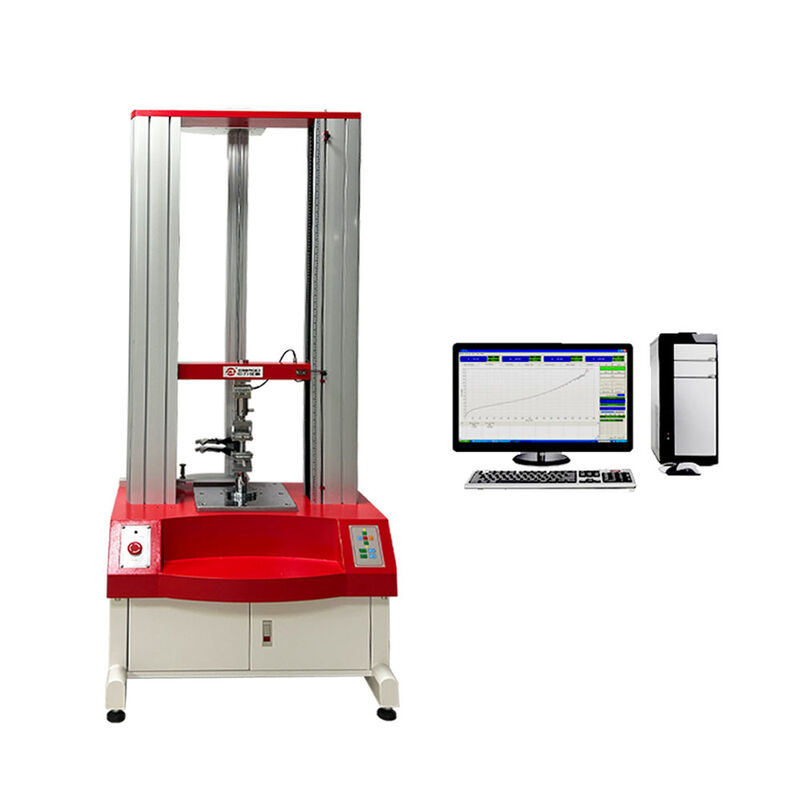

The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement and control.
Ideal for testing flexible materials with large deformation including rubber, plastics, leather, and more. Performs tensile, tear, adhesive strength, and peel tests.
| Parameter | Specification |
|---|---|
| Max Load | 5KN, 1ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width | 390mm (customizable) |
| Power Supply | 220V, 50HZ, 0.4KW |
| Machine Weight | 250kg |
Rubber & Plastics, Metallurgy, Manufacturing, Electronics, Automotive, Textiles, Packaging, Food, Medical Equipment, Research Laboratories, and more.
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific requirements.
We offer a two-year warranty with technical support and parts replacement as needed.
