| 로드 셀: | 5KN 또는 1톤 및 2톤 옵션 | 힘 해결: | 1/200000 |
|---|---|---|---|
| 힘 정확도: | ≤0.5% | 변위 해상도: | 1/1000 |
| 변위 정확도: | ≤0.5% | 속도 범위: | 0.01-500mm/분 또는 1000mm/분 |
| 장력 타격: | 800mm, 1000mm, 1200mm | 테스트 폭: | 380mm |
| 기계 크기: | 80*55*220cm(l*w*h) | 기계 무게: | 약 250kg |
| 전원 공급 장치: | 220V | 전력 소비: | 약 2kw |
| 신율계 분해능: | 1/1000 | 신율계 정확도: | ≤0.5% |
| 단위: | Kg, N, LB, TON 교환 가능 | ||
| 강조하다: | 5KN Load Cell Testing Machine,1/200000 Force Resolution Testing Machine,≤0.5% Accuracy Flexural Strength Tester |
||
| Parameter | Measurement Capability |
|---|---|
| Tensile stress | Tensile strength |
| Rate of elongation at break | Fixed stress |
| Rate of stress at break | Tear strength |
| Value of force at any point | Rate of elongation at any point |
| Stress strength | Pull-out strength |
| Force of adhesion | Value of peak |
| Parameter | Specification |
|---|---|

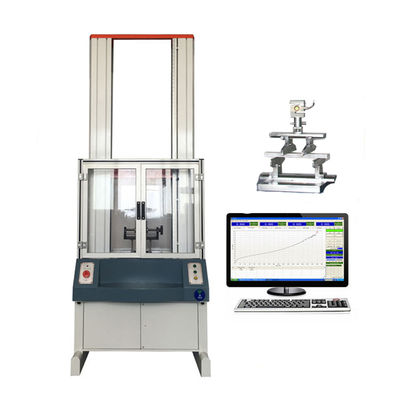

| Model | Three Point Bending Flexural Strength Testing Machine |
| Load Cell | 5KN or 1ton/2ton options |
| Force Resolution | 1/200,000 |
| Force Accuracy | ≤0.5% |
| Power Magnification | 7 automatic switching |
| Displacement Resolution | 1/1,000 |
| Displacement Accuracy | ≤0.5% |
| Extensometer Resolution | 1/1,000 |
| Extensometer Accuracy | ≤0.5% |
| Speed Range | 0.01-500mm/min or 1000mm/min (customizable) |
| Effective Tensile Stroke | 800mm, 1000mm, 1200mm (customizable) |
| Testing Width | 380mm (expandable) |
| Power Supply | 220V |
| Power Consumption | ~2KW (varies by motor) |
| Dimensions (L×W×H) | ~80×55×220cm |
| Weight | ~250kg |
| Units | Kg, N, LB, TON (interchangeable) |
