| 최대로드: | 5KN,1톤,2톤 | 정확도 측정: | 가치 ±1%/Display를 드러냅니다 value±0.5% |
|---|---|---|---|
| 효과적 테스트 폭: | 390mm | 효과적 장력 타격: | 800mm,1000mm,1200mm |
| 실험 속도의 범위: | 0.001~200mm/분; 500mm/분 | 변위 측정의 정확도: | 허용한도 : ±0.5%/ 허용한도 : ±0.2% |
| 변형 측정 시스템: | 최소 범위: 10mm, 최대 범위: 800mm | 측정된 변형의 정확도: | 공차: ±0.5% |
| 과부하 보호: | 과부하 10%, 자동 보호 | 기계 크기: | 80x55x220cm |
| 전원 공급 장치: | 220V,50HZ,0.4kw | 기계 무게: | 250kg |
| 테스터 해결: | 최대 부하 1/200000 | 로드 센서: | 기본 구성: 센서 1개 |
| 테스트 플랫폼 이동: | 빠른/느린 두 가지 속도 | ||
| 강조하다: | 2 Years Warranty Universal Testing Machine,390mm Testing Width Tensile Strength Testing Machine,800mm-1200mm Tensile Stroke Material Testing Machine |
||

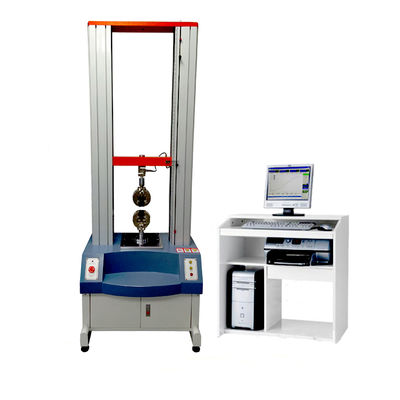

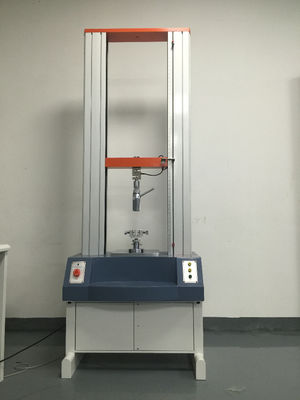

This advanced material testing machine combines electronic technology with mechanical transmission, offering precise load speed control and accurate force measurement. It features high sensitivity for load and displacement measurement, capable of constant-velocity loading and displacement testing. Ideal for quality control in production lines, this machine is designed for testing non-metallic and metallic materials with loads less than 1 ton.
Designed for testing flexible materials with large deformation, including rubber, plastics, and leather. Capable of performing tensile, tear, adhesive strength, and peel tests. Equipped with specialized extensometers for measuring large material deformations.
Widely used across multiple industries including quality control, rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, packaging, food, medical equipment, research institutions, and technical supervision departments.
| Parameter | Specification |
|---|---|
| Max Load | 5KN, 1ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width | 390mm (customizable) |
| Tensile Stroke | 800mm, 1000mm, 1200mm (customizable) |
| Power Supply | 220V, 50HZ, 0.4kw |
| Machine Dimensions | 80×55×220cm (L×W×H) |
| Weight | 250kg |
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific needs.
We provide a 2-year warranty including technical support and parts replacement when necessary.
Zhongli Instrument Technology Co., Ltd, headquartered in Dongguan, Guangdong, China, has been specializing in manufacturing lab testing equipment since 2007. Our products are exported to over 80 countries worldwide, with particular popularity in European and American markets.
For more information, please visit our official website: www.zltester.com
