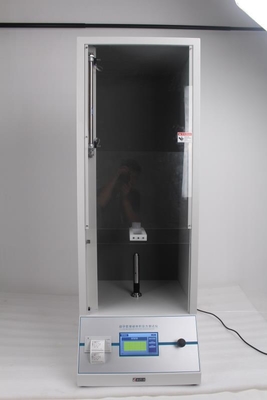

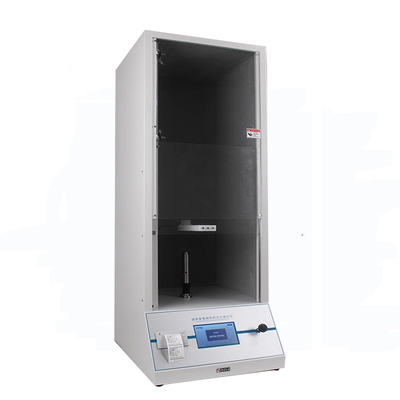

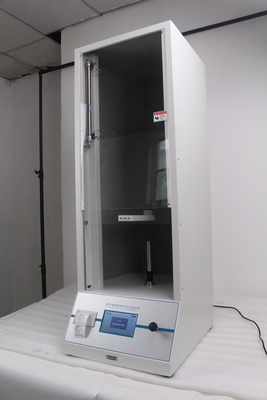

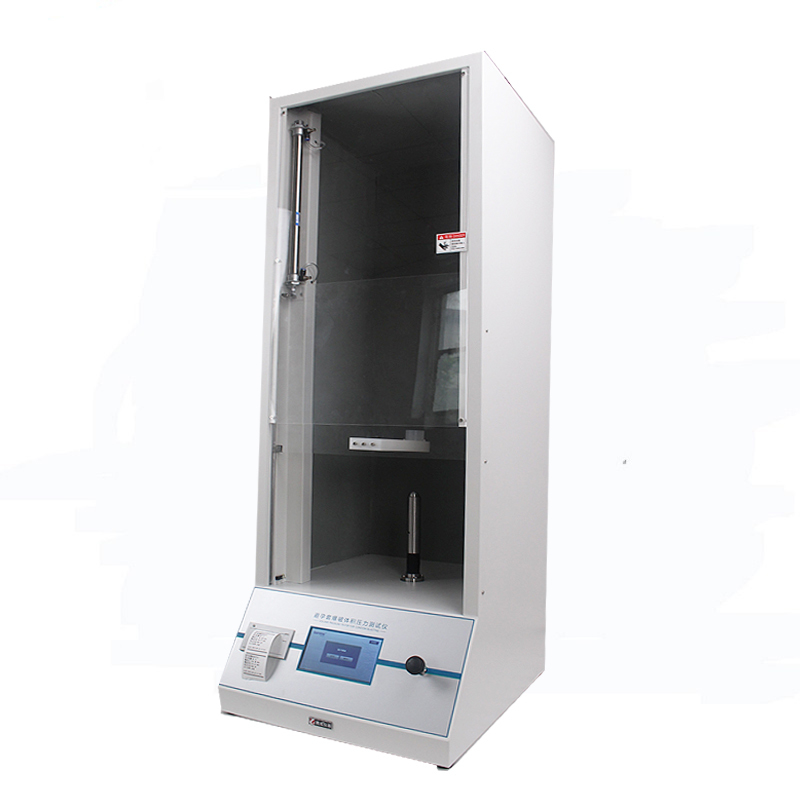

Condom Bursting Performance Tester

The condom bursting volume and pressure tester is designed and manufactured according to "GB7544-2019 Technical Requirements and Test Methods for Natural Latex Rubber Condoms". It is mainly suitable for the bursting capacity and bursting pressure volume measurement of various condoms/contraceptives, rubber gloves and other products, and can meet the needs of various drug testing institutes and quality inspection institutes for product testing.

Professional Technology:

lCompatible with GB7544, ASTM, ISO multiple standards

lThe host system can support connecting multiple sub-machines for simultaneous testing

lThe standard automatic air shaft clamping efficiency is high, does not damage the sample, and completes the test easily

lProfessional measurement and control software real-time statistics of burst flow, volume and pressure data

lPositive pressure design principle, simple operation, stable and reliable performance

lOne-click operation during the test, efficient and intelligent,

lHigh-definition LCD display, automatic statistics and printing of results

lTest accessory support, flexible test mode, and compatible with diverse

lNot only can it automatically display and record the volume and pressure values of condom bursts, but also automatically analyze the information of unqualified products

lOne computer can control at least two condom bursters at the same time

lOperators can add or edit test standards independently

lCan operate offline, automatically collect data, record the pressure value, volume value and other data of the test burst, and provide reports.

Test Principle:

Put the condom on the blowing rod, and it is required to be put over the inflation sleeve. Hold the inflation clamp to the height of the inflation sleeve and start the test. The instrument first inflates the inflation sleeve, and the condom is fixed between the inflation sleeve and the clamp. The software delays a little and starts to inflate the condom. The condom expands and bursts. The screen displays the bursting pressure and the inflation volume at the time of the burst. The bursting volume is expressed in cubic decimeters and rounded to 1dm3; the bursting pressure is expressed in kilopascals and rounded to 0.01 kPa. The inflation rate can be adjusted by adjusting the knob. If there is a leak during the inflation process, the test can be manually terminated. The bursting volume and pressure are both recorded as zero. If the condom does not leak, measure and record the bursting volume and pressure.

Test Standard:

The instrument complies with the standards: GB7544-2019, ISO23409, ASTM D6324

Technical Parameters:
